Screen Media Accessories
Pull from the same pallet when replacing screens
Screen Rails
Screen Rails offered in rubber, steel, or urethane, available in many styles. A-36 steel rails are standard.
Money-Saver rails. 1/4” or 3/8” thick steel hole protector patch welded onto the steel rail.
The recessed holes in the Money-Saver, heavy-duty steel, double-faced heavy-duty steel and rubber rails reduce head wear on the tension bolts.
Double-faced heavy duty rails. 1/4” or 3/8” thick steel double faced wear strip welded on the steel rail.
Rubber rails. 1/2” rubber vulcanized onto a 5/16” steel rail, backing plate in between.
Rubber full-faced rails. Due to the flexibility of the patented vulcanized rubber tread design, large rocks hitting the rubber flex it inward instead of penetrating and breaking the rubber.
Polyurethane Clad Rails
1/4” steel with 1/2” polyurethane.

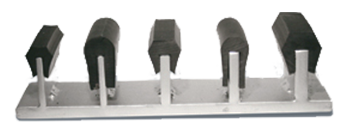

Channel Rubber
Available in 60-75 durometer, flat-top or round-top and 50’ and 100’ rolls. In stock for immediate delivery.
Round Top Long Leg
Available in 1/4”, 3/8” & 1/2”
Heavy Hex
Available in 1/4”, 3/8”, 1/2” & 3/4”
Extra wear life - XMBR
Channel urethane. Available in 1/4”, 3/8” & 1/2”

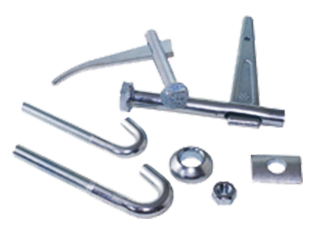

Screen Tension Accessories
Bolts, nuts and washers
Bolts in various steel grades
Shaker screen bolts
J-Bolts
Slotted pin and wedge tensioning assemblies
All bolts are available from stock in a wide range of sizes and styles
