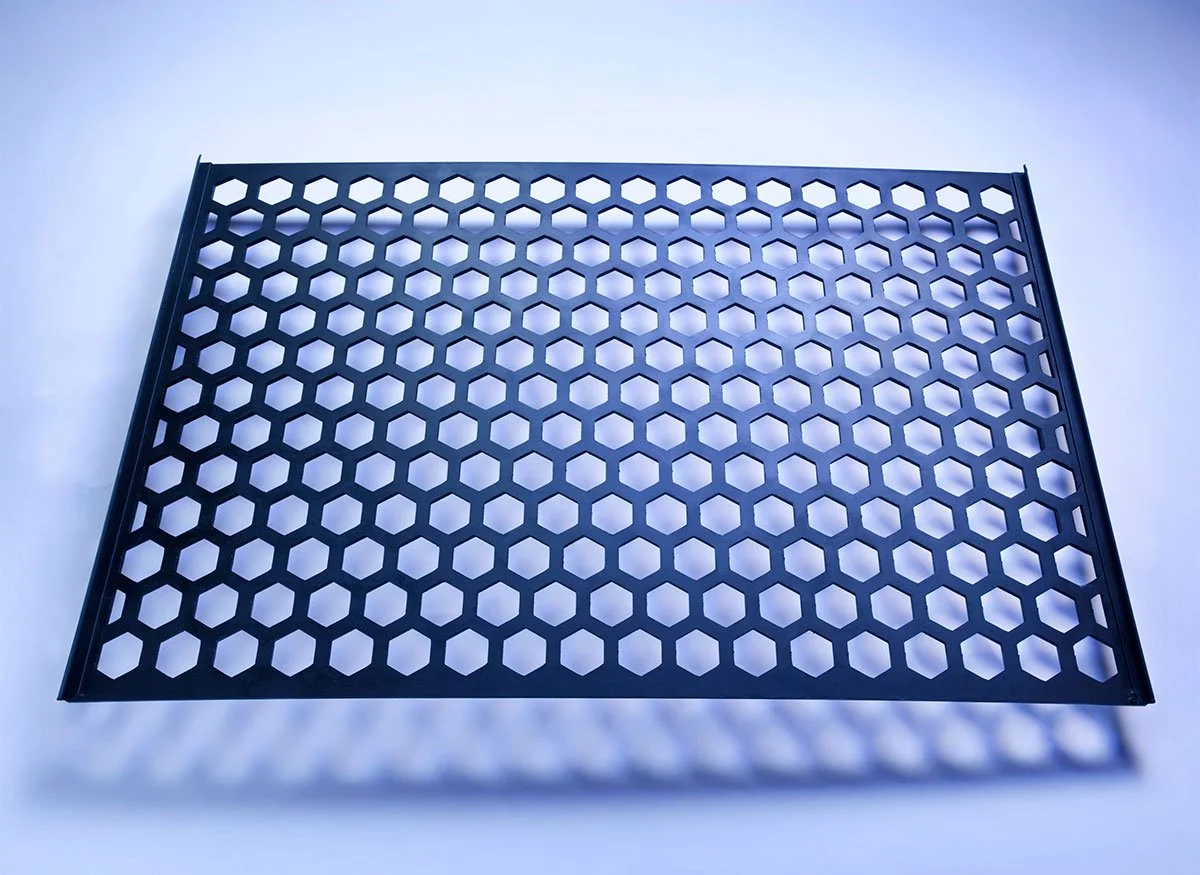

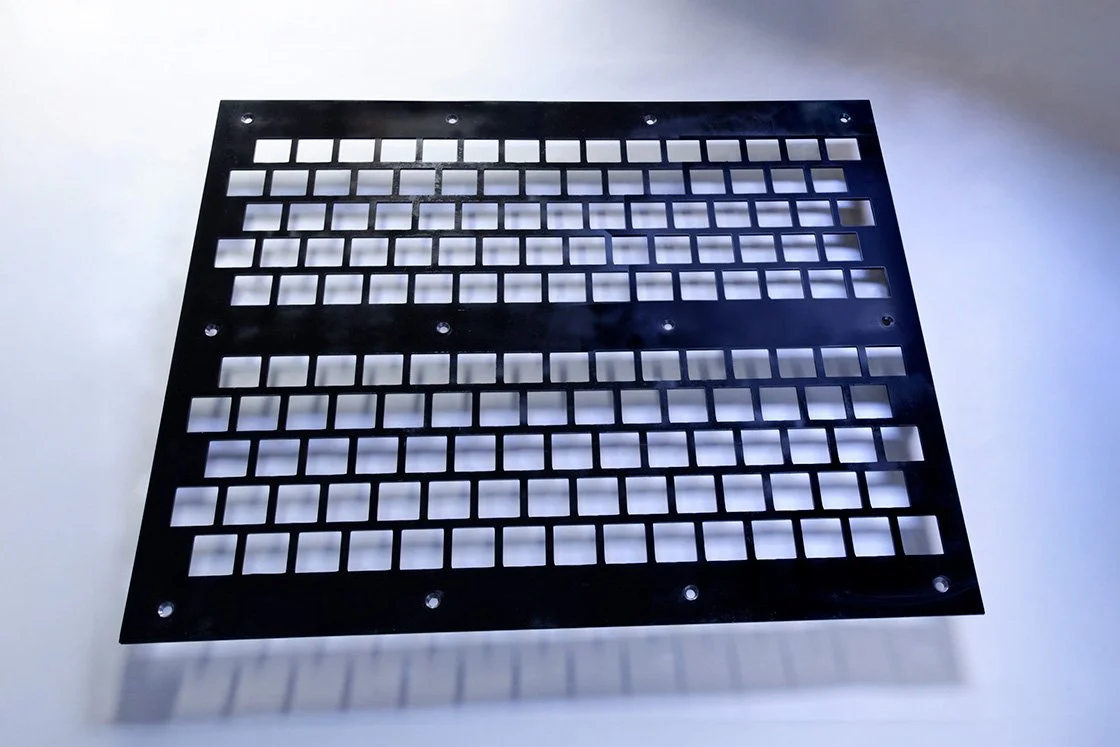

Punch Plate

Long wear life, ideal for high-impact applications

Black plastic grid with hexagonal holes on white background.
Black grid panel with multiple square cutouts, placed on a white surface.
Empty white square

EASY INSTALL

A blank white image with no visible objects or details.

IMPACT RESISTANT

Male gender symbol with circular arrow and plus sign in the center

LONGER WEAR LIFE

Why use Punch Plate?

Punch Plate (also known as perforated plate) is ideal for highly abrasive materials, however, it is heavy and has a lower open area than woven wire screen media.

Use Punch Plate on the feed end of the screen to take the brunt of the impact and separate oversized material from undersized particles. Use Unified’s woven wire cloth on panels further down the feed and on lower screen decks to maintain the highest open area for maximum production.

A common application is on scalping screens, after raw materials have passed through primary crushers.

FEATURES

  • Unified can manufacture a pattern to meet your specifications, either straight or staggered

  • Material thickness can be customized, up to one inch

  • Protect screen support frame with customized blanked out areas

A 3x3 grid of empty squares within a black pattern background.
off-aligned square pattern

SQUARE
STRAIGHT

SQUARE
STAGGERED

straight aligned rectangle pattern
off-aligned rectangle pattern

RECTANGLE
STRAIGHT

RECTANGLE
STAGGERED

A black background with a pattern of grey circles arranged in rows and columns.
Black background with white circle patterns arranged in an off-aligned grid.

ROUND
STRAIGHT

ROUND
STAGGERED

Black background with a repeating pattern of white outlined hexagons.
Pattern of off-aligned hexagons on a black background.

HEXAGON
STRAIGHT

HEXAGON
STAGGERED

straight aligned rounded rectangles pattern
off aligned rounded rectangles pattern

OBSLOT
STAGGERED

OBSLOT
STRAIGHT
